01 / The meter line

Eight meters, one standard.

ANSI and IEC metering for Philippine utilities — from single-phase socket meters to CT-rated polyphase units. Specifications per the 2025 product catalog.

01

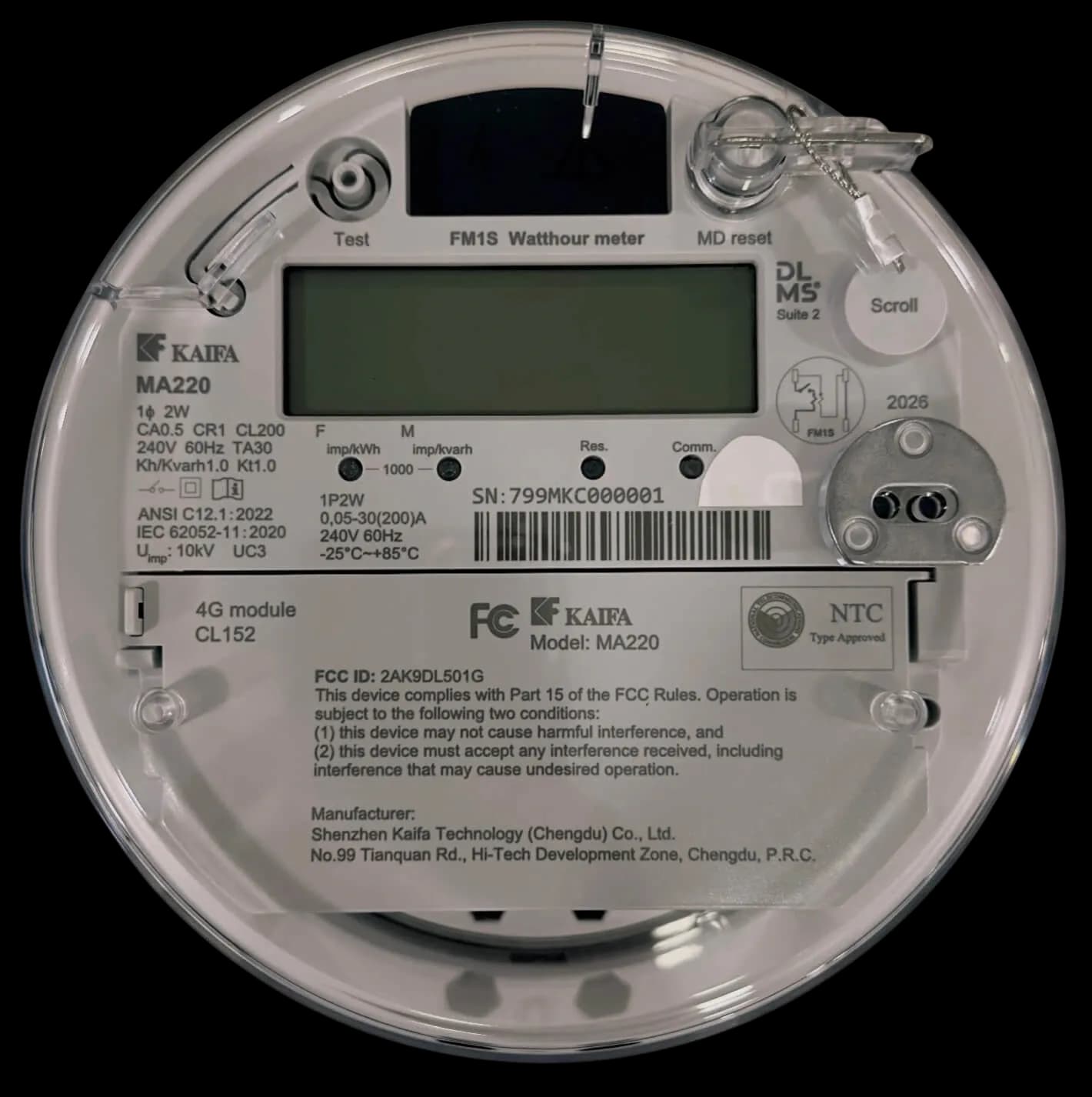

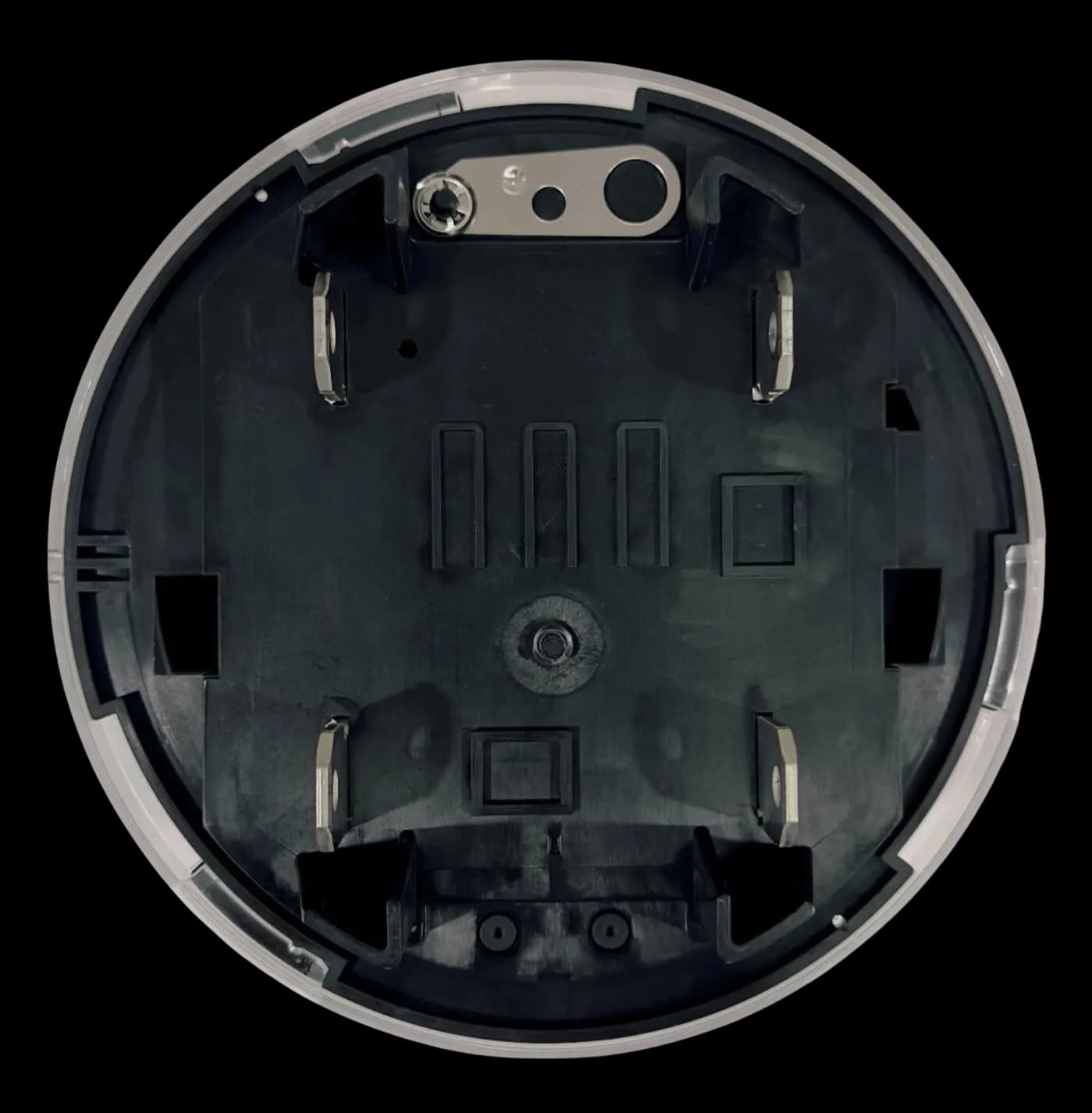

MA220ELECTRO MA220 — FM1S — Single-Phase 2-Wire, ANSIELECTRO MA220 — rear viewRear view

MA220

FM1S — Single-Phase 2-Wire, ANSI

Single-phase 2-wire ANSI smart meter measuring energy and demand — active, reactive and apparent energy with maximum and cumulative maximum demand, data storage, configurable display, instantaneous value and grid-quality detection and record, multi-tariff and load profiling.

1P2WClass 0.5 · ANSI C12.20240 V · 60 Hz30(200) A · start 50 mA2000 imp/kWhIP54 · −40 to 85 °C
02

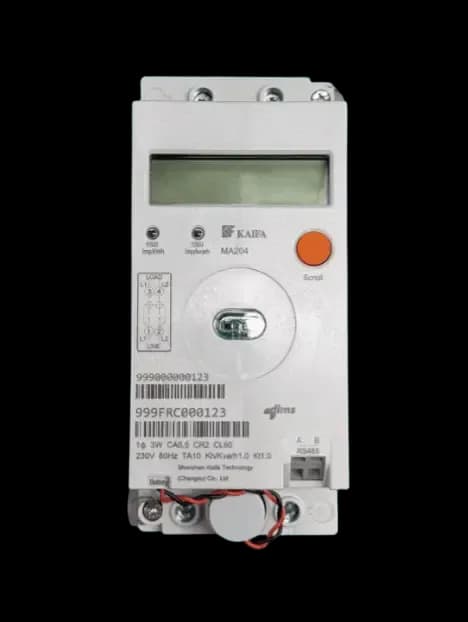

MA204ELECTRO MA204 — EMX — DIN-Rail, IECELECTRO MA204 — rear viewRear view

MA204

EMX — DIN-Rail, IEC

EMX single-phase DIN-rail meter built to IEC standards. Detailed specifications to follow.

Single-phaseDIN-railIEC
03

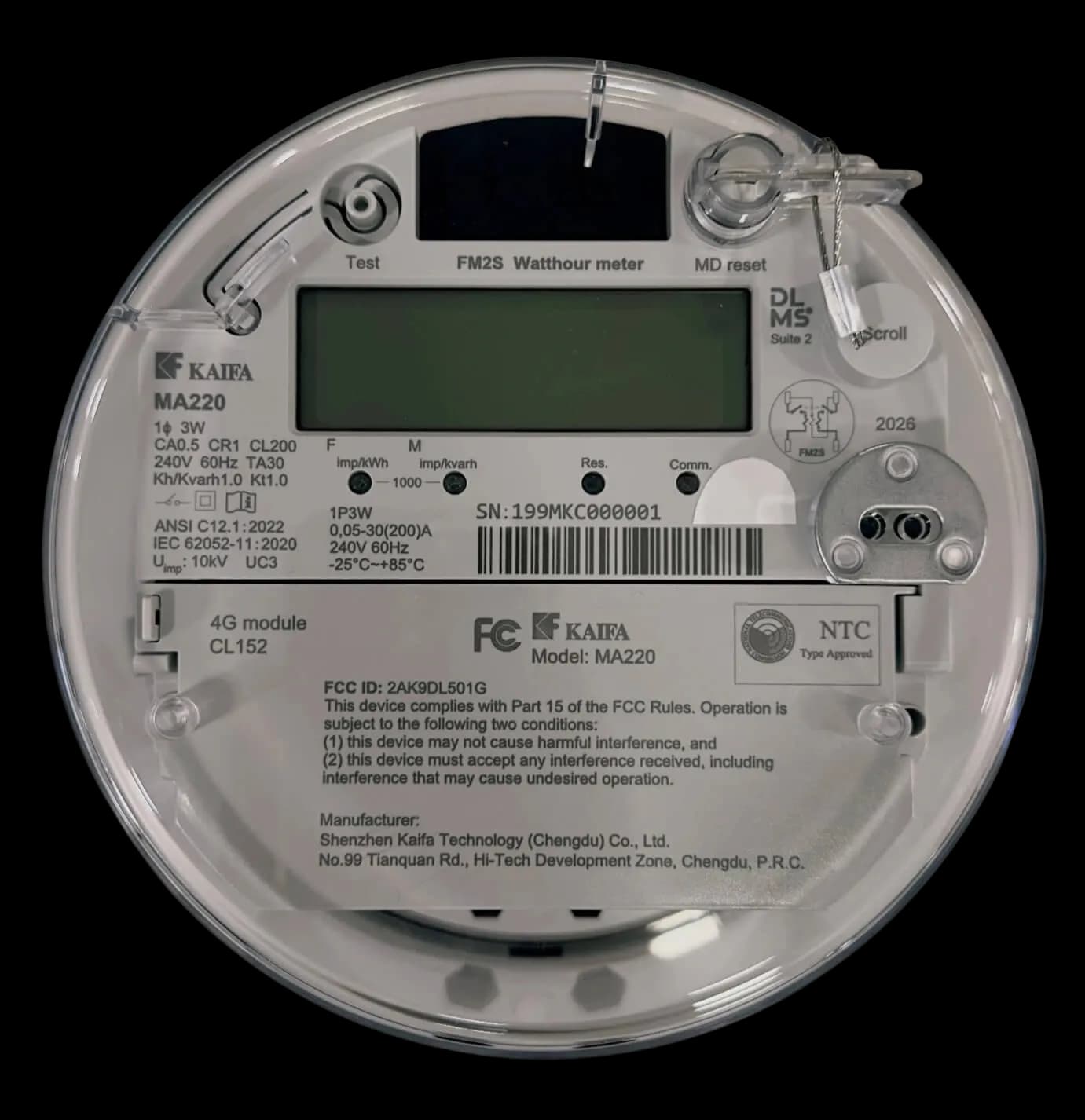

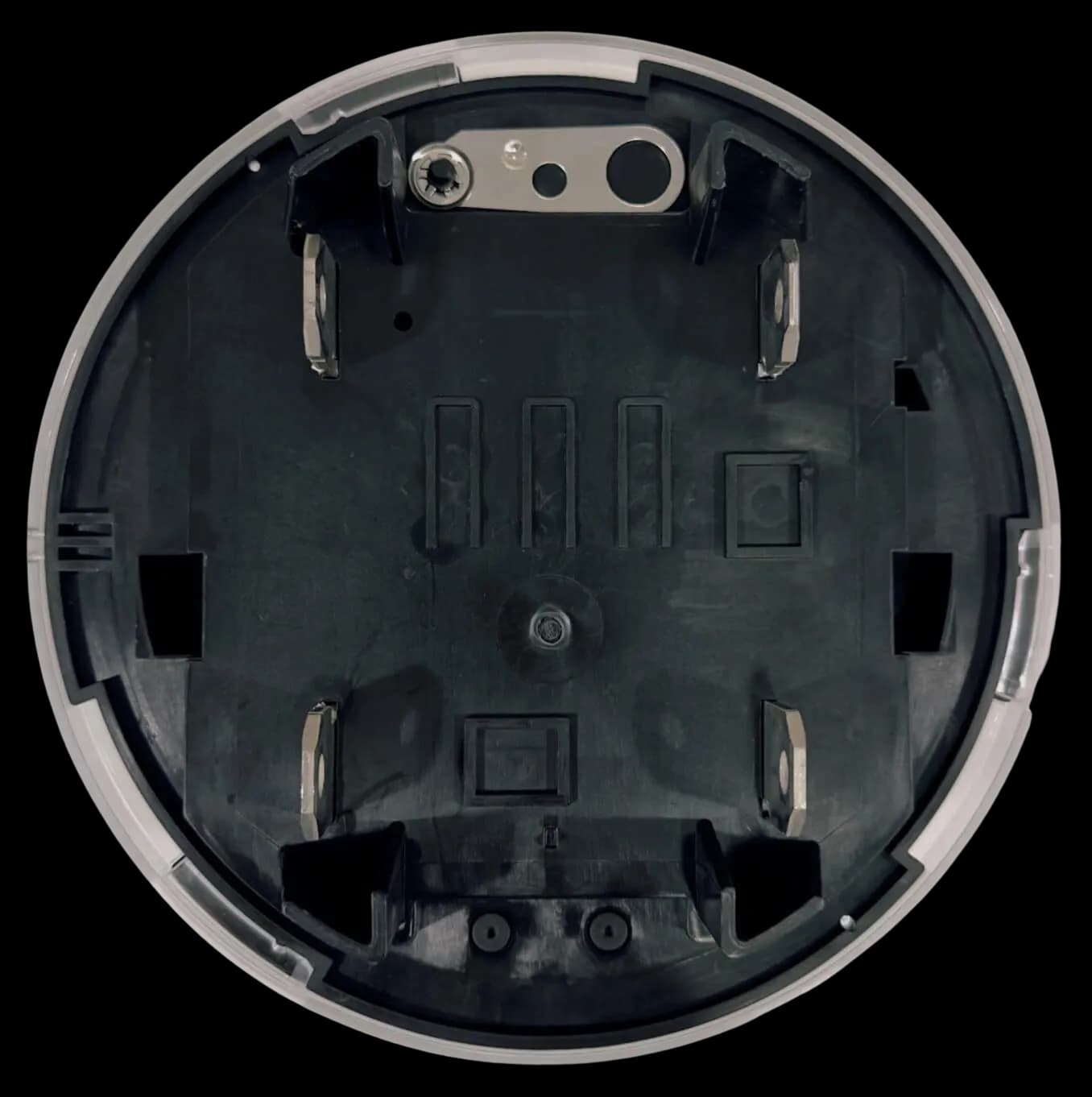

MA220ELECTRO MA220 — FM2S — Single-Phase 3-Wire, ANSIELECTRO MA220 — rear viewRear view

MA220

FM2S — Single-Phase 3-Wire, ANSI

Single-phase 3-wire ANSI smart meter — DLMS/ANSI standards compliant with local and remote firmware upgrade, automatic relay for connection and disconnection, meter irregularity detection and tilt-event recording.

1P3WClass 0.5 · ANSI C12.20240 V · 60 Hz30(200) A · start 50 mA2000 imp/kWhIP54 · −40 to 85 °C
04

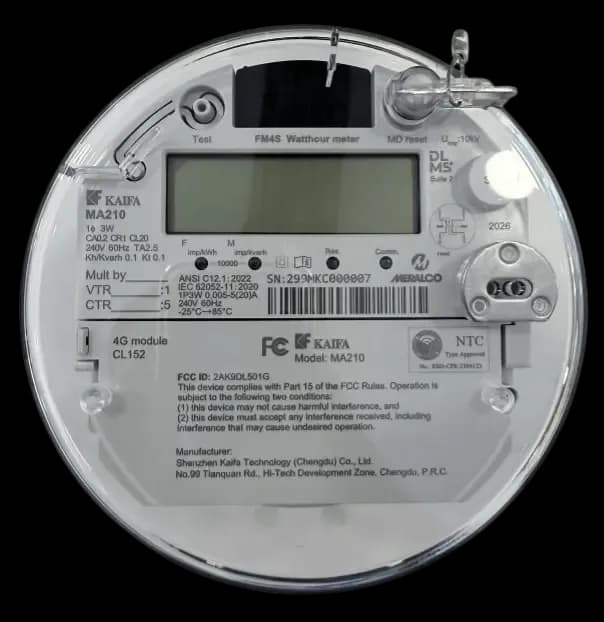

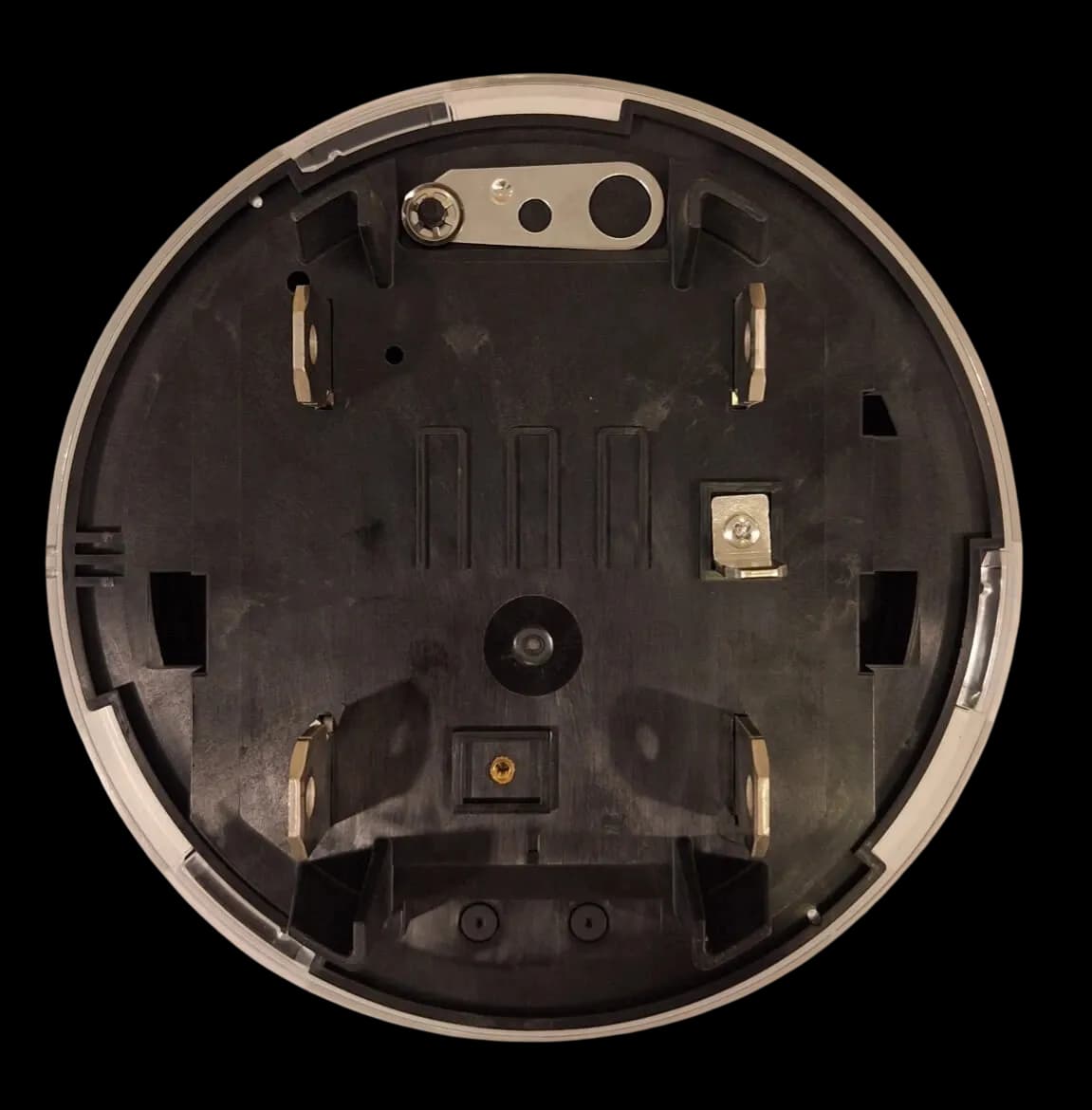

MA210ELECTRO MA210 — FM4S — Energy Meter, ANSIELECTRO MA210 — rear viewRear view

MA210

FM4S — Energy Meter, ANSI

ANSI FM4S energy meter — 1P3W connection with industrial-grade 8-digit LCD, configurable pulse constant and a 20-year design life and data retention.

1P3WCA 0.2 / CR 110000 imp/kWh240 V L-L · 60 Hz20 A · start 5 mA10 kV surge · IP54
05

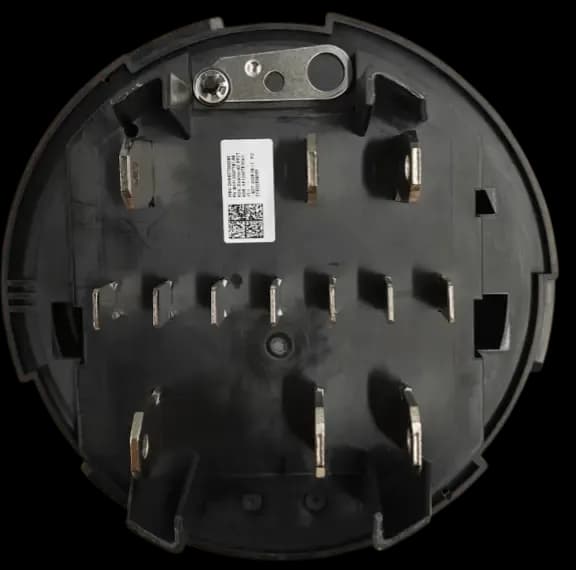

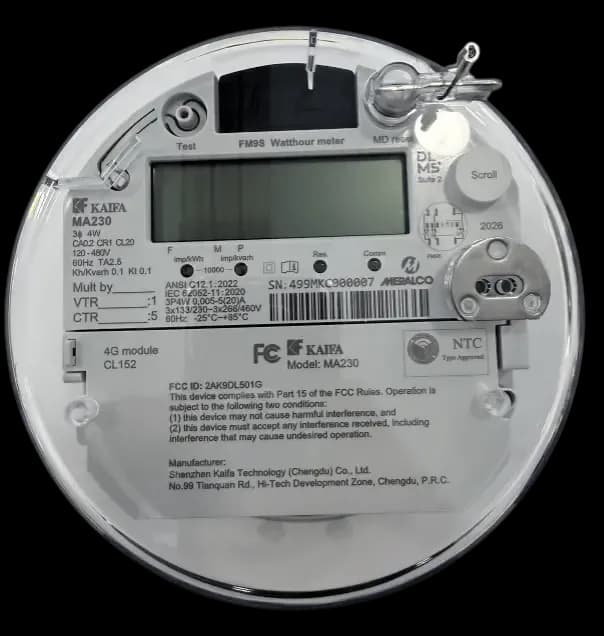

MA230ELECTRO MA230 — FM9S — CT-Rated 3P4W, ANSIELECTRO MA230 — rear viewRear view

MA230

FM9S — CT-Rated 3P4W, ANSI

ANSI FM9S CT-rated 3-phase 4-wire energy meter for instrument-transformer installations — 10 terminal screws, hologram-sealed metrology and 20-year data retention.

3P4W · CT ratedCA 0.2 / CR 110000 imp/kWh100–480 V L-L20 A · start 5 mA10 kV surge · IP54
06

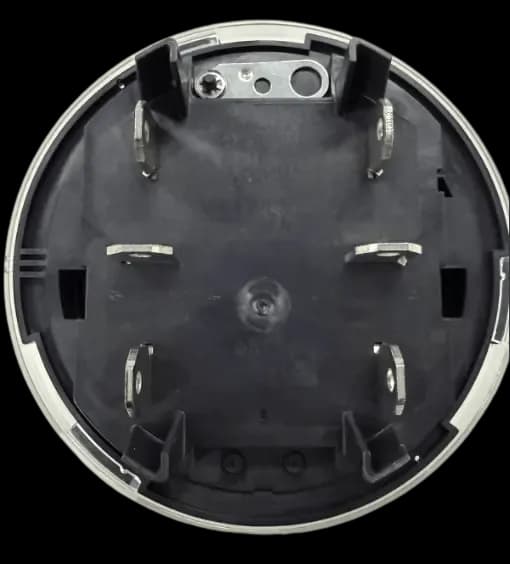

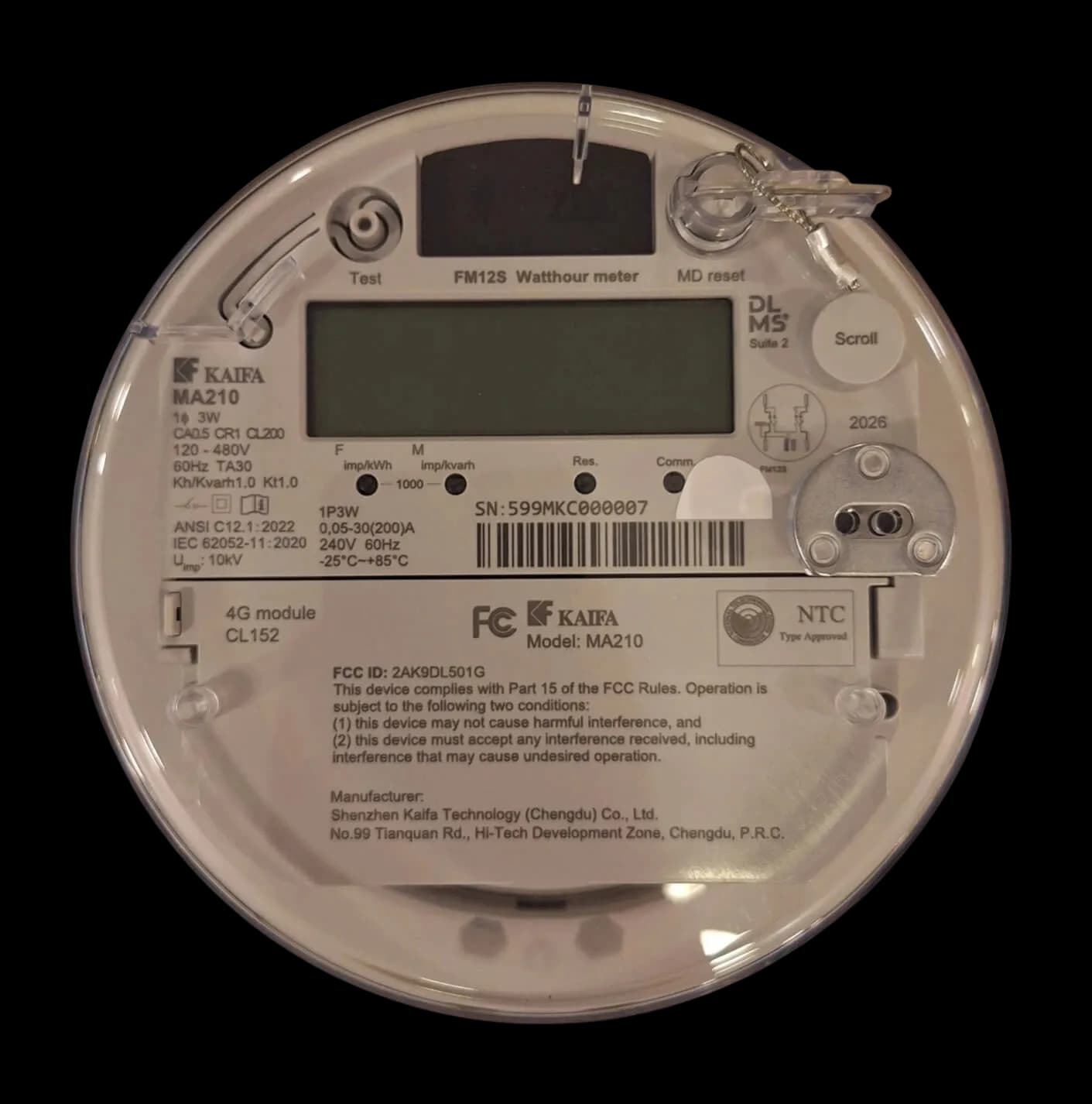

MA210ELECTRO MA210 — FM12S — Energy Meter, ANSIELECTRO MA210 — rear viewRear view

MA210

FM12S — Energy Meter, ANSI

ANSI FM12S energy meter — 2P3W connection with an integrated 200 A, 240 Vac magnetically-latching connect/disconnect switch rated for 5000 cycles.

2P3WCA 0.5 / CR 11000 imp/kWh240 V L-L (98–276 V)20 A · start 50 mA200 A disconnect switch
07

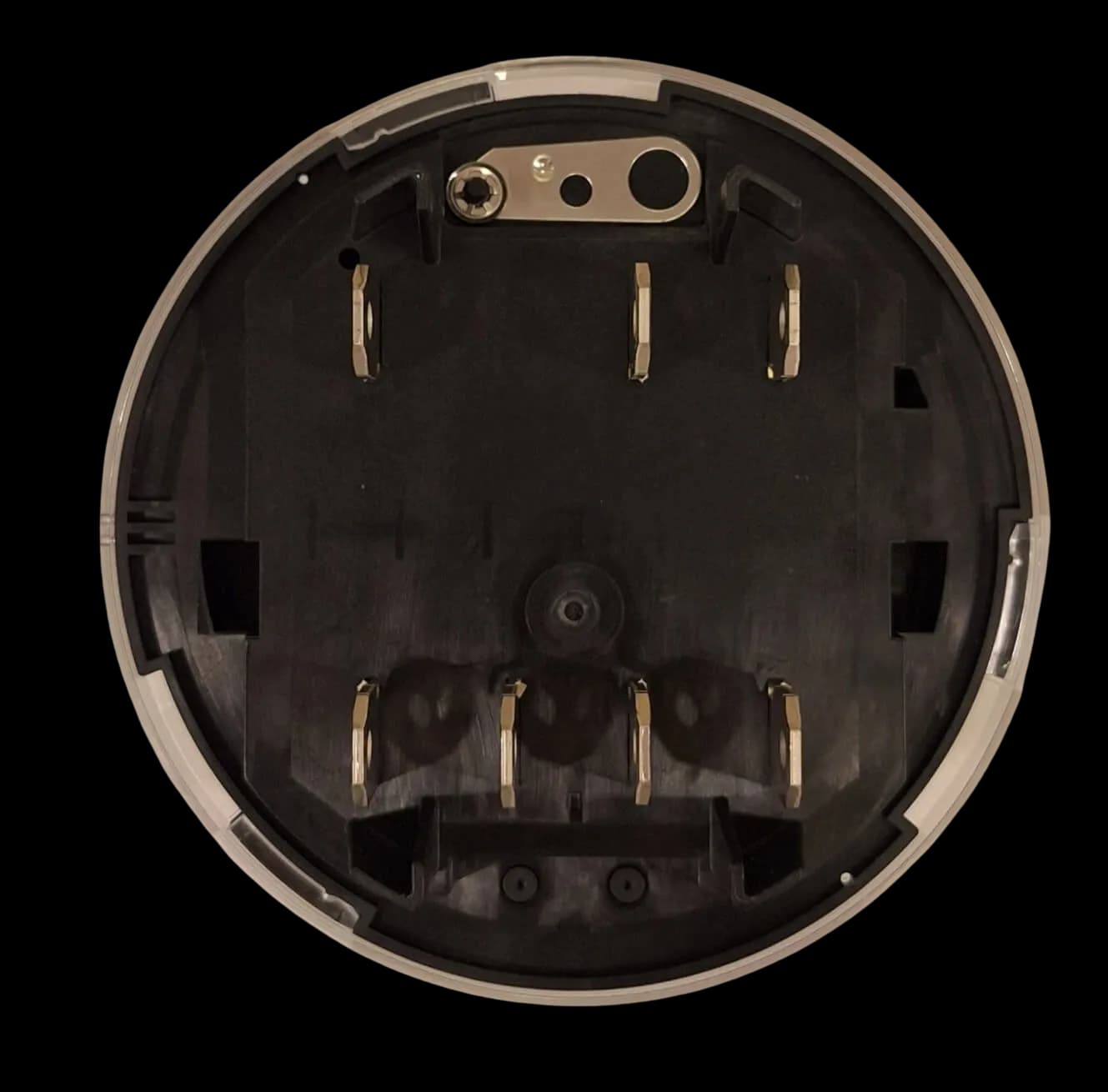

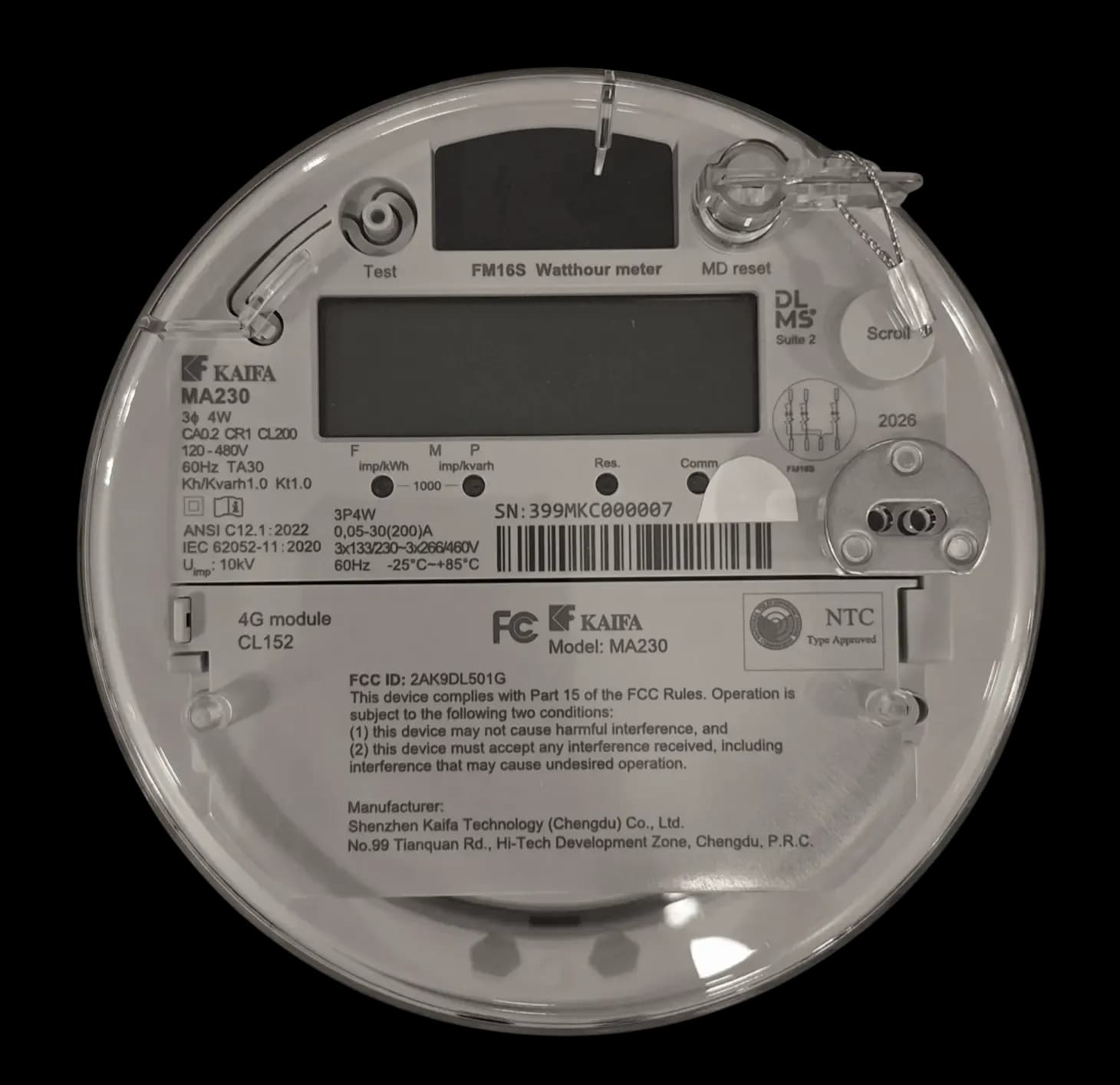

MA230ELECTRO MA230 — FM16S — 3-Phase 4-Wire, ANSIELECTRO MA230 — rear viewRear view

MA230

FM16S — 3-Phase 4-Wire, ANSI

ANSI FM16S 3-phase 4-wire energy meter for direct-connected commercial loads up to 200 A across a 120–480 V line-to-line operating range.

3P4WCA 0.2 / CR 11000 imp/kWh120–480 V L-L200 A · start 25 mA10 kV surge · IP54
08

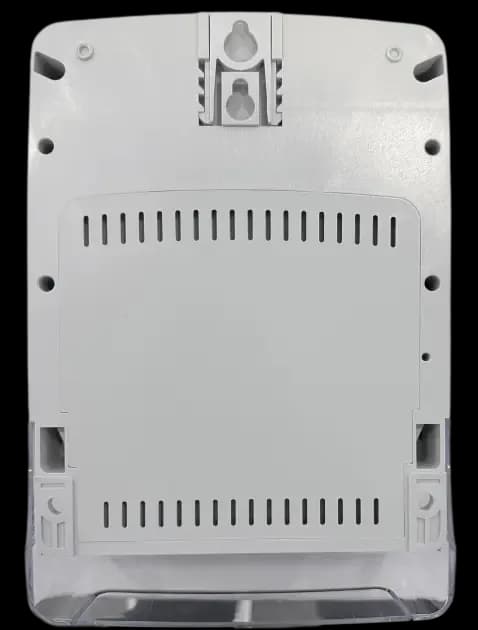

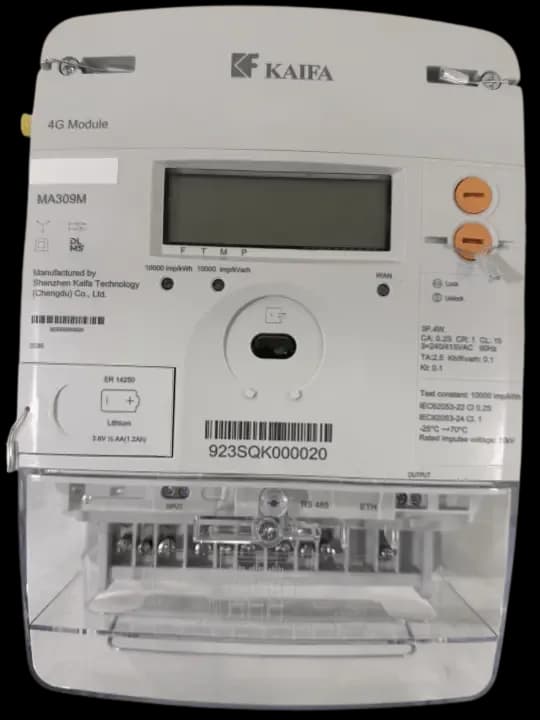

MA309MELECTRO MA309M — CT Meter — Three-Phase, IECELECTRO MA309M — rear viewRear view

MA309M

CT Meter — Three-Phase, IEC

Three-phase CT-operated meter built to IEC standards. Detailed specifications to follow.

Three-phaseCT operatedIEC

02System accessories

Everything around the meter.

Software, collection hardware and field enclosures — the parts that turn a box of meters into a working system.

HES (Head-End System) License

Central software that collects, validates and manages meter data across the deployment.

MDC Data Collector

Aggregates readings from field meters and forwards them upstream to the head end.

MDC Repeater (RS485, RF Module)

Extends network reach between meters and the collector over RS485 or RF.

Customer Information Unit

In-home display giving customers direct visibility of their own consumption.

EMX Single Phase Meter LMEM-MA204

Compact DIN-rail single-phase meter for service points that call for an IEC form.

Meter Cabinet

Protective outdoor housing for single and multi-meter installations.

MDC Cabinet

Weather-rated enclosure for the data collector and its network hardware.

CIU Cabinet

Enclosure for the customer information unit at the service entrance.

Mounting Bracket

Standard mounting hardware for meter and cabinet installation.

03Polymers

Polymers, by the grade.

Electro Premier Venture provides a wide range of HDPE, LLDPE and PP grades to meet the diverse needs of our customers. Our polymers are sourced from world-class manufacturers and are ideal for packaging, industrial, consumer and specialty applications.

Translucent polymer pellets pouring into a mound
GradeHDPEHigh-Density PolyethyleneLLDPELinear Low-Density PolyethylenePPPolypropylene
PropertiesHigh strength, impact resistance and excellent chemical resistance.Excellent toughness, flexibility and puncture resistance.High stiffness, heat resistance and good chemical resistance.
Applications
  • Bottles
  • Containers
  • Pipes
  • Industrial applications
  • Films
  • Liners
  • Shrink wrap
  • Flexible packaging
  • Containers
  • Caps
  • Automotive parts
  • Household products
